Harmony XALE

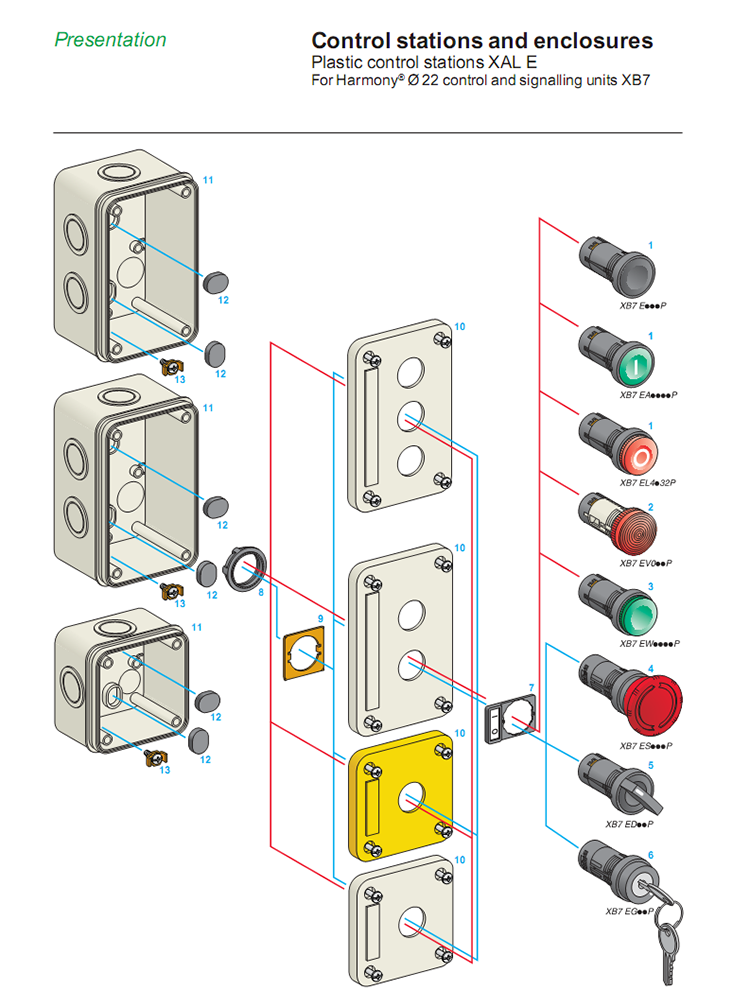

      Plastic control stations XALE Optimum, for Ø 22 control and signalling units Harmony® XB7

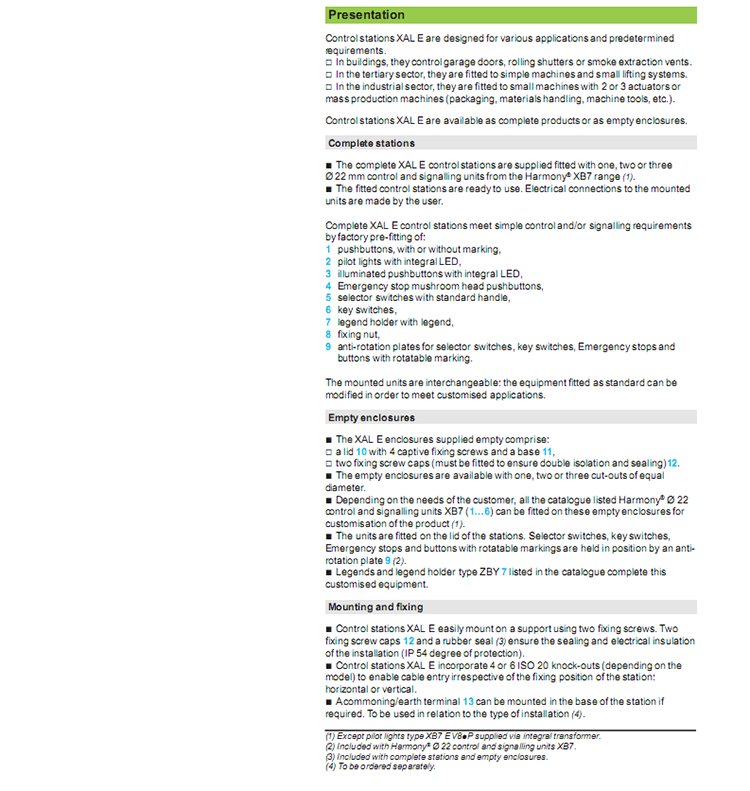

Description
These control stations cater for the most commonly encountered
functions: start, stop, start-stop, Emergency stop.
Complete stations:
  • Ready to use, the 45 complete XALE stations are fitted with 1, 2 or 3 Ø 22 mm control and signalling units from the Harmony® XB7 range

Stations for customer assembly:
  • 4 empty enclosures with 1, 2 or 3 cut-outs for user fitting of Harmony® XB7 units, in order to meet specific requirements.


  • Mechanical resistance of product: IK05
  • Conformity to main standards: IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, IEC/EN 62208
  • Certification: CE
  • Degree of protection: IP54


Applications
  • Food and beverage sector: animal farming, food and beverage production/processing, water industry, cereal and fruit growing,...
  • Marine sector: aquaculture, shipbuilding and maintenance,...
  • Tertiary sector: building construction, waste and wastewater treatment,...
