  TeSys U Total Cordination Motor Starter
  TeSys U มอเตอร์สตาร์ทเตอร์ประสิทธิภาพสูง

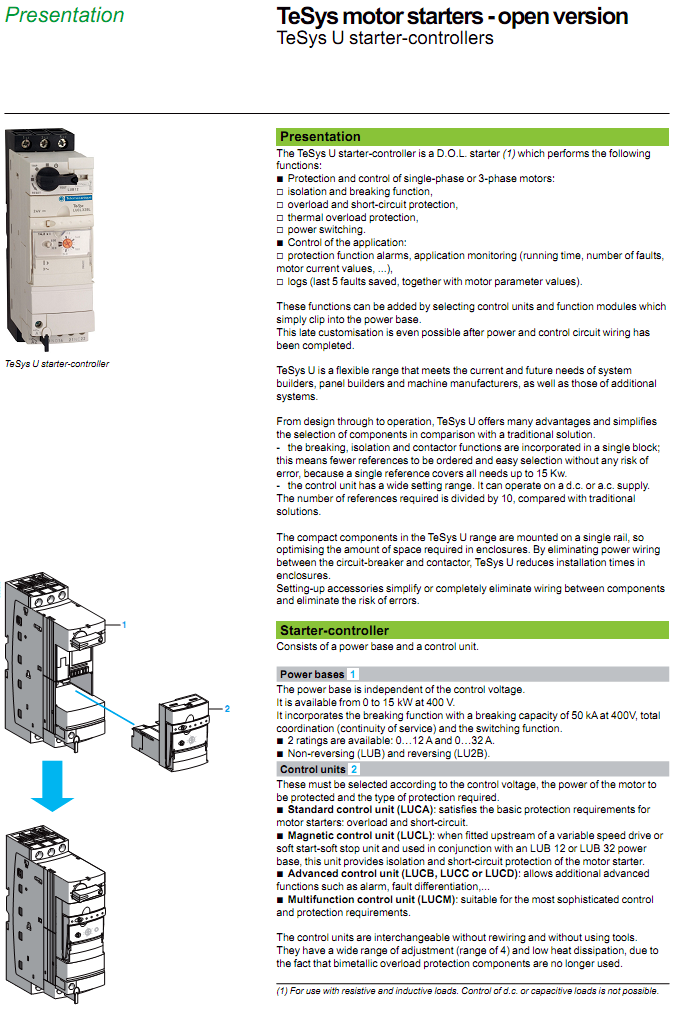

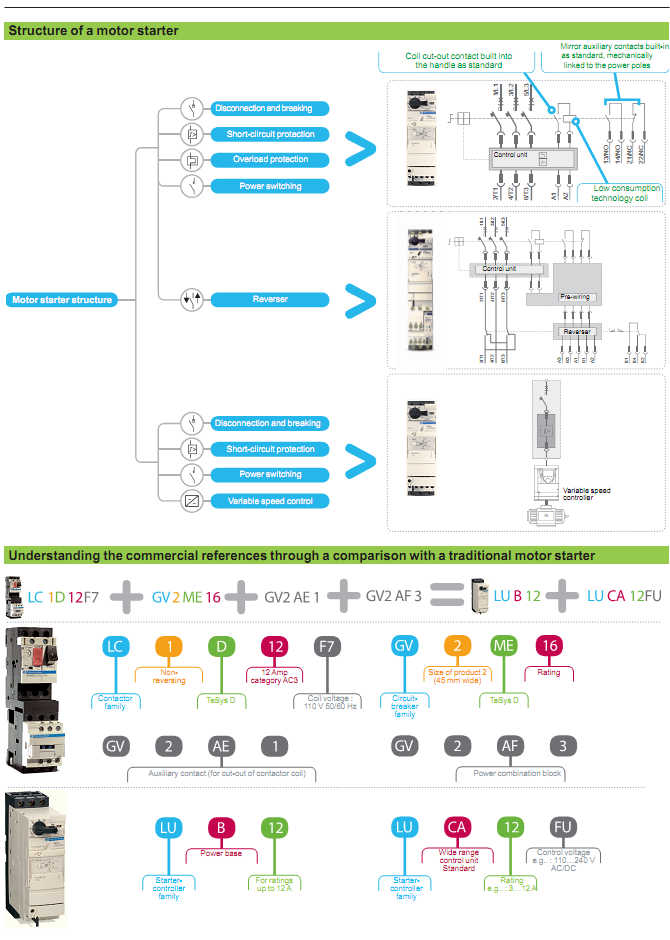

Description
    With a capacity of up to 32A/15 kW, TeSys U consists of :
  • One 45 mm power base (1): 2 ratings, reversing or non-reversing, circuit-breaker function and built-in interference suppression

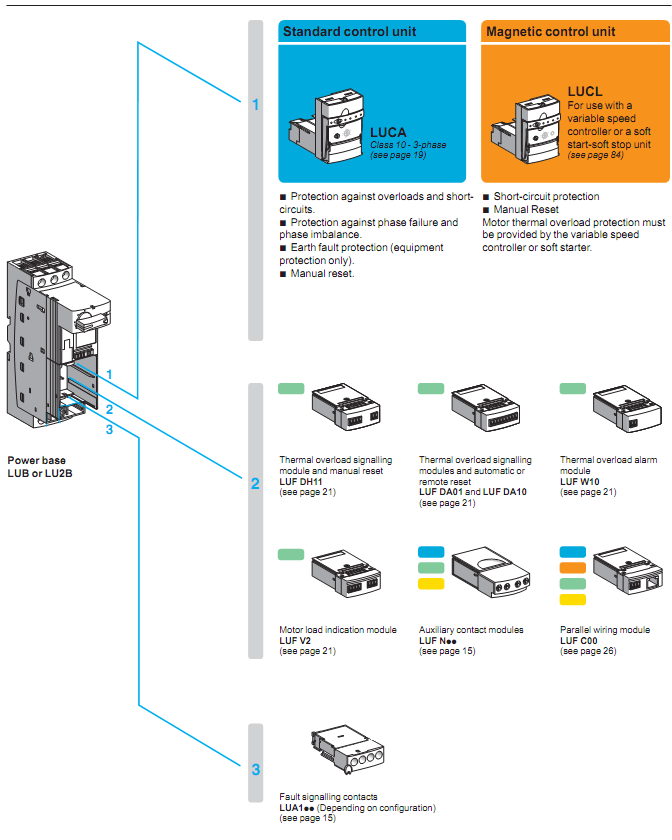

  • One clip-on control unit, from a choice of 3: Standard CU : protection against overloads and short-circuits/Expandable CU: + alarm and fault differentiation/ Multifunction CU (2) : realtime control of motor load, local or remote
    diagnostics and parameter setting

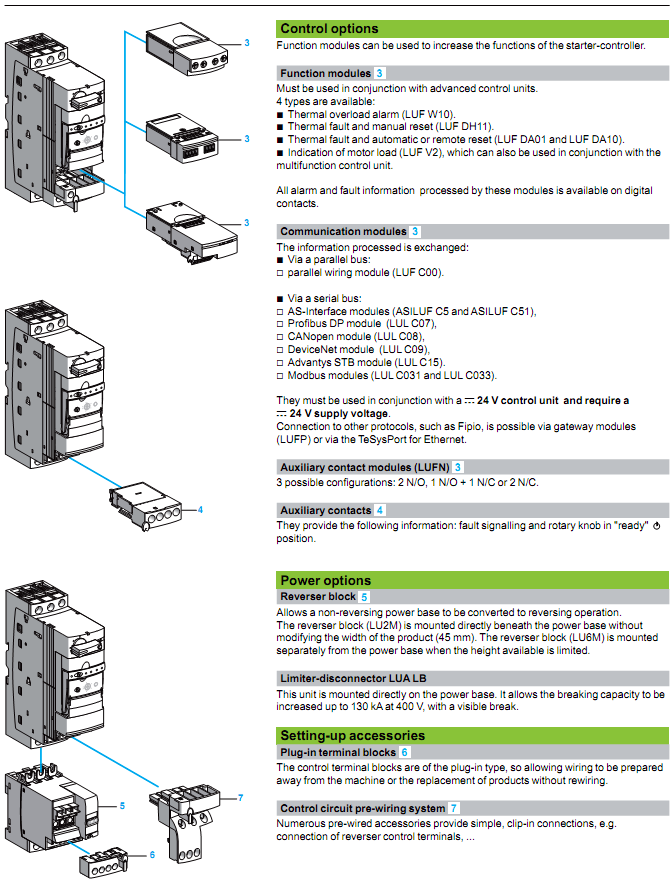

  • One clip-on automation control module, from a choice of 3 :(3): Modbus, CANopen, AS-Interface et Profibus DP, Ethernet, DeviceNet, Fipio, Interbus S via Advantys STB le module or a simple parallel link
  • Two optional 45 mm power functions: limiter-isolator(4) and changeover relay (5)

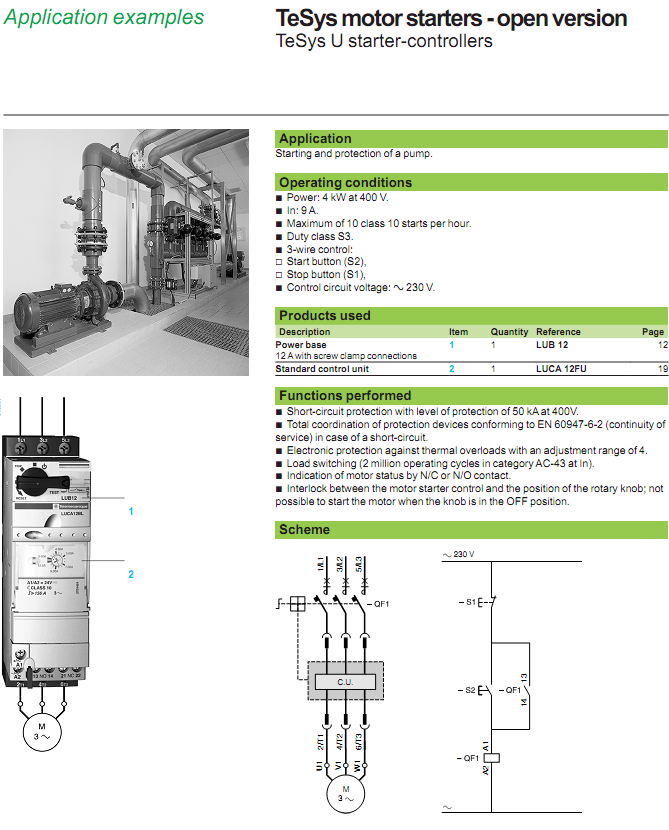

Applications
  • Industry: ideal solution when the motor starter needs to be decentralized in the machine or the process
